1.2MPa 150 Flowserve Mechanical Seal For Water Pump

Hefei Supseals International Trade Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

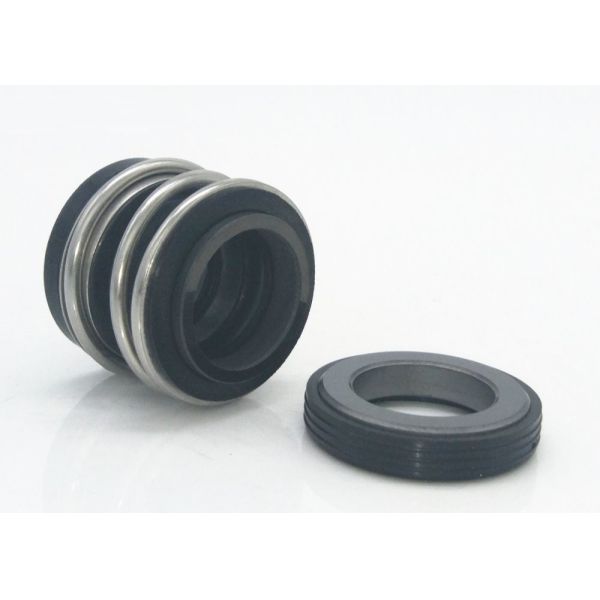

1.2MPa 150 Flowserve Mechanical Seal For Water Pump

  • 1
  • 2

Brand Name : JR

Model Number : 150A

Certification : ISO9001

Place of Origin : MADE IN CHINA

MOQ : 100PC

Price : Negotiated

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000000PC/Month

Delivery Time : 10DAYS

Packaging Details : box as requirement

Material : SIC SIC FKM Cer Car Nbr

Function : for Oil Pump, Water Pump

Transport Package : box

HS Code : 848420090

Specification : Burgmann MG1S20 seal seal inch

Certificate : ISO9001

Type : John Crane type 2 (n seat) seal Aesseal BP02 seal

Standard or Nonstand : Standard

Style : Mechanical seal Aesseal BP02 seal

Size : 10-100MM

Contact Now

Mechanical Seal Flowserve Mechanical Seals 150A Sterling 152 Seal John Crane Seal

Operations Conditions:

  1. Flowserve 150 seal
  2. Sterling 152 seal
  3. Temperature: -40℃ to +180℃
  4. Pressure: ≤1.2MPa
  5. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered
  • Rotary Ring: Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless,
  • Silicon Carbide Reaction Bonded,
  • Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (FKM)
  • Spring and Metal Parts:Stainless Steel,Stainless Steel
  • Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids.

Performance Capabilities:

Temperature
-40℃ to 180℃, dependent on the elastomer
Pressure
Up to 1.2MPA
Speed
Up to 15m/s
End play/axial float allowance
±0.1mm
Size
10-100MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

1. it is equivalent to

John Crane type 2 (n seat) seal

2. Our seals can replace the original seals.

3. If it is not the one you need, you can pass us your drawing , material,shaft size for quotation.

4. Customized products and OEM is welcomed

5. We provide Factory Price, High Quality , Fast Delivery and Best Sevice.

1.2MPa 150 Flowserve Mechanical Seal For Water Pump

1.2MPa 150 Flowserve Mechanical Seal For Water Pump

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
